Specification :
  • SE -100.1 Stand Polished wood 1 pc
  • U-Tube Manometer Glass tubing with valve 1 pc
  • Permeability Cell Glass 1 pc
  • Perforated Disc Non Corroding Metal 1 pc
  • Plunger Stainless steel 1 pc
  • Stoke Solution Dibulylphtalate 1 ltr
  • Filter Paper Type 1, grade B 1 box
  • Funnel Glass 1 pc
Specification :
  • Gilmore Apparatus Cast alumunium frame galvanized.steel rod & weight   1 set
  • Initial Needle 1/ 12 ” dia, stainless steel   1pc
  • Final Needle 1/ 24 ” dia. stainless steel    1pc
  • Glass Plate 5 mm thick 80 x 80 mm approximately    1 pc
Specially designed for expansion tests on cements. High pressure
steam vessel with internal dimensions 154mm diameter x 430mm
high. Accepts a rack which holds 10 specimens. Supplied
complete with pressure gauge, pressure regulator, temperature
controller, safety valve and specimen rack.
electric, 220 V-AC, 100 rpm, welded steel frame, brass
table, 10″ dia, 1/2″ drop
  • Cement Cube Mold         Cast iron 3 gang 2 ” x 2 ” x 2 ” 1 pc
  • Frame Welded steel 10 ” dia 1/ 2 ” drop. brass table  1 pc
  • Flow Mold brass  1 pc
  • Tamper Plastic 1/ 2 ” x 1 ” fare 1 pc
  • Graduated Cylinder 250 ml capacity  1 pc
  • Scrapper Plastic handle  1 pc
  • Flow Table Electric operated    1 pc
dimension (l x w x h) : 70 x 70 x 70 cm
gross weight : 45kg
Time of Setting of Hydraulic Cement by Vicat Needle  (item code : RE-120)

Dimension (l x w x h)
: 60 x 30 x 30 cm
Gross Weight
: 8 kg

ASTM C-187/C-191
AASHTO T-129/T-133
For determining normal consistency and time of setting of hydraulic cement
RE-121
Vicat Apparatus
Cast alumunium frame, stainless steel rod 10 mm dia., 300 gr. weight with needle, 0-50 mm scale
1 Pc
RE-123
Initial Needle
Steel needle, 1 mm dia., with footing, brass thread
1 Pc
RE-124
Final Needle
Steel needle, 1 mm dia., brass thread
1 Pc
RE-125
Conical Ring Mold
70 mm base dia., 60 mm top dia., 40 mm height
1 Pc
RE-126
Glass Plate
Glass, 10 mm thich, 12 x 12 cm
1 Pc

Also required, but not part of this set :
RG-152 Triple Beam Balance
RG-360 Mixing Bowl
RG-396 Glass Plate
RG-403 Graduated Cylinder
RG-700 Stop Watch
RG-747 Rubber Gloves
RG-825 Scapper

RG-950 Mortar Mixer
Specific Gravity of Hydraulic Cement Test
(item code : RE-110)

Dimension (l x w x h)
: 20 x 20 x 30 cm
Gross Weight
: 8 kg

ASTM C-188
AASHTO T-133
For determining specific gravity of hydraulic cement
RE-111
Le Chatelier Flask
250 ml cap., the neck graduated 0-1 ml and 15-24 ml
1 Pc
RE-112
Kerosene
Deaired kerosene
1 Ltr
RG-473
Funnel
Glass, narrow mouth
1 Pc
RG-521
Wash Bottle
Plastic, 250 ml capacity
1 Pc
RG-530
Pipette
Glass, 5 ml capacity
1 Pc
RG-600
Thermometer
Glass, 0-50OC
1 Pc
RG-820
Spatula
150 mm blade length
1 Pc
RG-922
Soft Brush
Round type
1 Pc

Also required, but not part of this set :

RG-150
Cent o-gram balance
Compressive Strength of Hydraulic Cement Mortar (item code : RE-160)

Dimension (l x w x h)
: 60 x 60 x 60 cm
Gross Weight
: 50 kg

ASTM C-109
AASHTO T-106
For determining compressive strength of hydraulic cement mortar by using 2″ cube speciment
RE-161

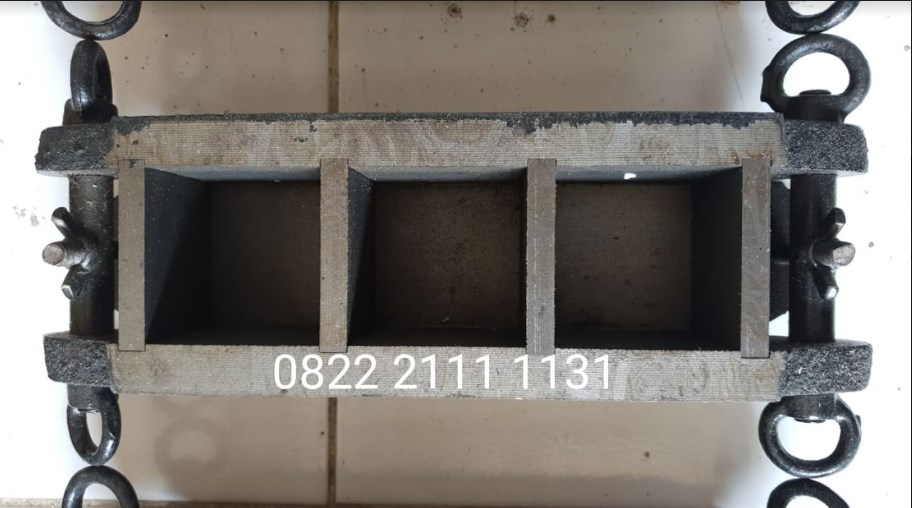

Cement Cube Mold
Cast iron, 3 gang, 2″ x 2″
1 Pc
RE-162
Flow Table
Hand Operated
Consist of:
RE-162.1
Frame
Welded steel, brass table, 10″ dia., 0.3″ thick, 1/2″ drop
1 Pc
RE-162.2
Flow Mold
Brass, base 101.6 mm dia., top 69.85 mm dia., top 69.85 mm dia., height 50.8 mm
1 Pc
RG-713
Vernier Caliper
300 mm capacity
1 Pc
RE-168
Tamper
Plastic, 1/2″ x 1″ face, 6″ strength
1 Pc
RG-396
Glass Plate
Glass, 10 mm thick, 30 x 30 cm
1 Pc
RG-403
Graduated Cylinder
250 ml capacity
1 Pc
RG-825
Scraper
Plastic handle
1 Pc


Also required,
but not part of this set :
RE-169 Standard Sand (# 20; # 30)RG170 Compression Machine
RG-152 Triple Beam Balance
RG-363 Mixing Bowl
RG-700< Stop Watch
RG-747 Rubber Gloves
RG-950 Mortar Mixer
